I’m back to Building Servers from Scratch

Playing around with Kubernetes and Edge Computing has opened up a world of possibilities for me, especially when it comes to breathing new life into the older equipment in my lab. Take, for example, my old Intel NUC i5 with 16GB RAM. It used to be a virtual host, but it’s been retired to a file cabinet drawer for a while now. Well, not anymore. It’s now serving as a pretty solid Kubernetes node.

Then there’s my stack of Raspberry Pi 4s. These little guys are always up to something different. Some days, they’re working together as a 5-node cluster. Other days, they’re spread out, each one simulating a small server in a different part of the world.

This constant repurposing means I’m often building machines from scratch. I wanted to make this process quicker and simpler. I wanted to be able to install a fresh server over the network in a snap, without having to rummage around for a USB stick to use as installation media.

So, I decided to take the plunge and set up an openSUSE Installation Server and a PXE boot server. With an Installation Server, all I need to do is boot the computer with a small installation image. Then, I can direct the install program to use the Installation Server as the source. Just like that, all the install files come streaming over the network from the installation server.

Preboot eXecution Environment (PXE) is a protocol that enables a computer to boot its operating system from a server via a network, without requiring a hard drive or an operating system installed locally. This means I can start the installation without looking for a thumb disk!”

I was pleasantly surprised to find out that there are Yast plugins available to automate most of the work. It’s like having a little helper to take care of the heavy lifting.

This is the first part of a two-part series. In this part, I’ll be talking about the Installation Server. In Part Two, we’ll dive into the PXE Server.


System Requirements


Software Requirements

openSUSE Leap 15.5 – Server Pattern (for smallest image)

Detailed instructions for this installation can be found at the following link:

Step-by-Step Guide Installing openSUSE Leap on your virtualized environment

Hardware Requirements

  • Small Server or VM
  • 1 or 2 Cores
  • 2 GB of RAM
  • 40 GB for OS + 10-15 Gigs for each OS

IP Addresses used in Example

  • Server name: install
  • IP address: 10.0.99.254
  • Mask: 255.255.255.0
  • DNS: 10.0.0.10
  • Default Route: 10.0.99.1
  • NTP: 10.0.0.1

Final Install URLs when Lab is completed

  • http://10.0.99.254/install/leap-15.5-x86/CD1/
  • http://10.0.99.254/install/leap-15.5-arm/CD1/

Setup Installation server

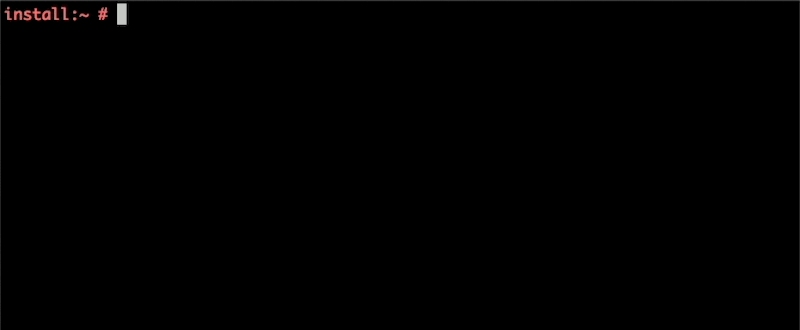

Update openSUSE

Before starting, we need to ensure the server has the latest patches.

zypper ref && zypper up -y






























Download and prepare Leap iso files




1) Create a folder to store iso files

mkdir -p /data/iso
cd /data/iso



2) Download openSUSE Leap x86 installation iso files

Now, let’s download the openSUSE Leap x86 installation ISO files. We will use wget to do this.

To get the latest URL, you can always go to get.opensuse.org

wget https://download.opensuse.org/distribution/leap/15.5/iso/openSUSE-Leap-15.5-DVD-x86_64-Build491.1-Media.iso

3) Download openSUSE Leap aarch64(ARM) installation iso files

  • Repeat the process above to download the openSUSE Leap aarch64(ARM) installation ISO files.
wget https://download.opensuse.org/distribution/leap/15.5/iso/openSUSE-Leap-15.5-DVD-aarch64-Build491.1-Media.iso

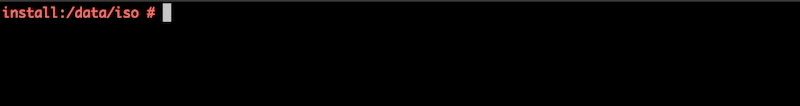

4) Verify files are downloaded completely

To ensure the files have downloaded correctly, you can run the ll command.

ll


Install Yast Plugin for Installation Server

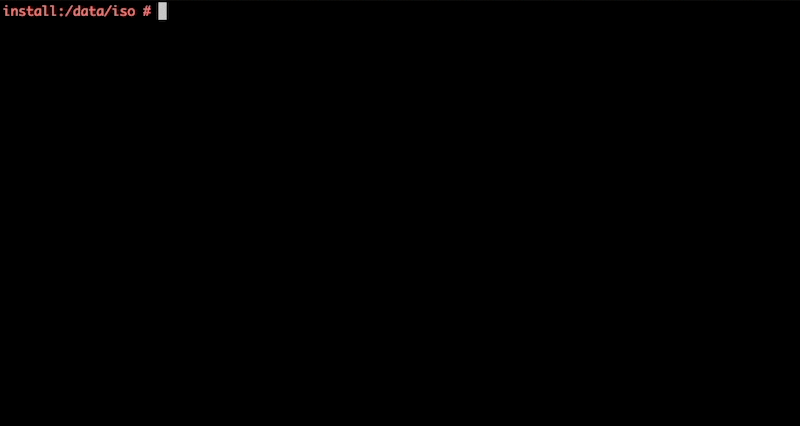

1) Install Yast Plugin for Installation Server

Next, we will install the Yast Plugin for the Installation Server. This plugin simplifies the Installation Server setup process.

The plugin will handle everything from:

  • Installing all necessary applications (think web server),
  • Configure the Firewall (if needed)
  • Setup Installation folders with proper rights
  • Copy files from the ISO for the installation
zypper in yast2-instserver


Configure Installation Server

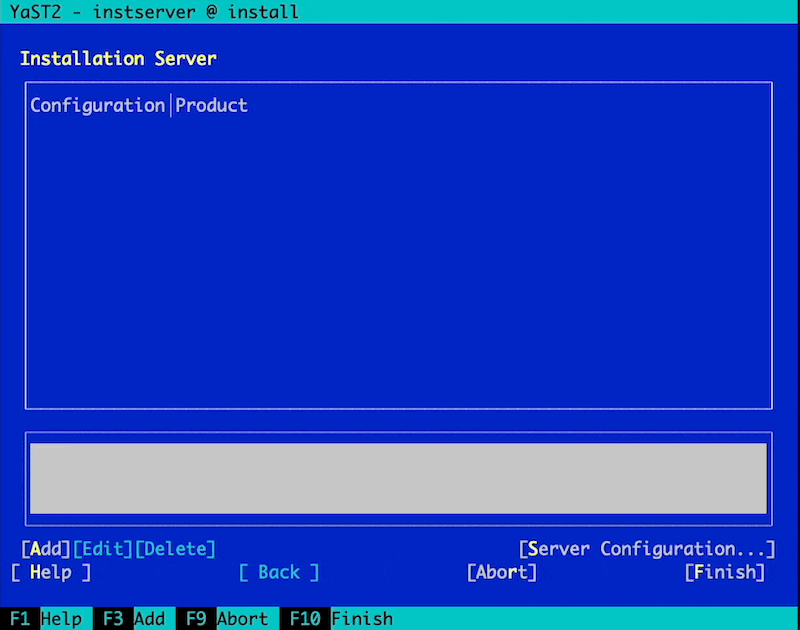

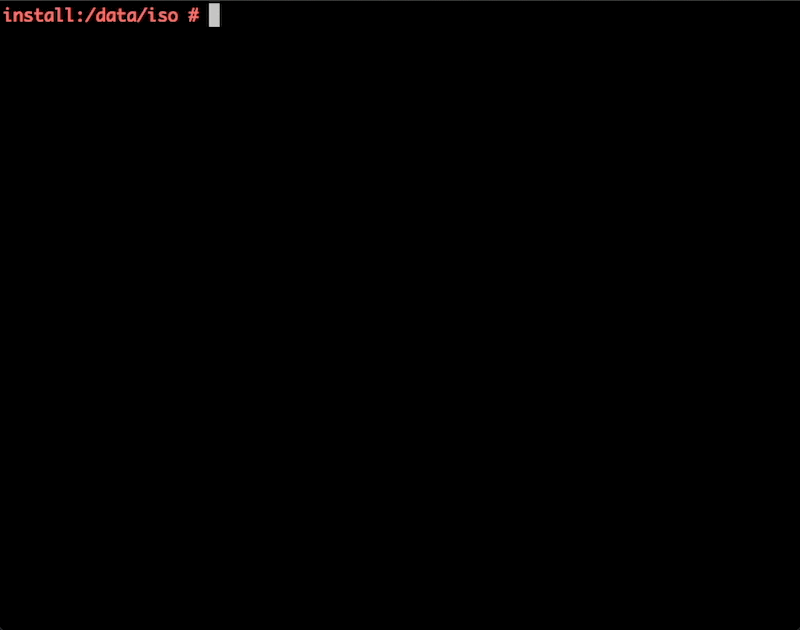

1) Launch Installation Server Yast Plugin

Launch Yast and Select Miscellaneous->Installation Server



    yast
    Select Miscellaneous->Installation Server

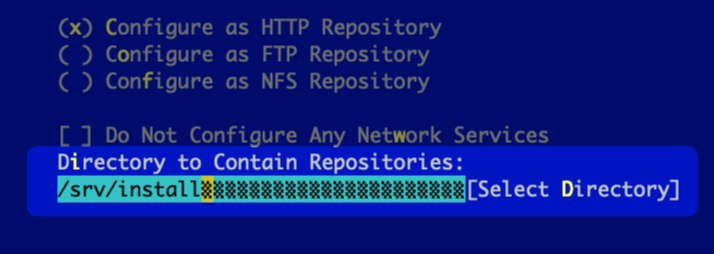

2) Select the Directory to Contain Repositories

This is the Directory where the Install Wizard will copy all of the files from the iso.

Choose the Directory to contain Repositories. For instance, you can leave it at the default (/srv/install).

Directory to Contain Repositories:

/srv/install

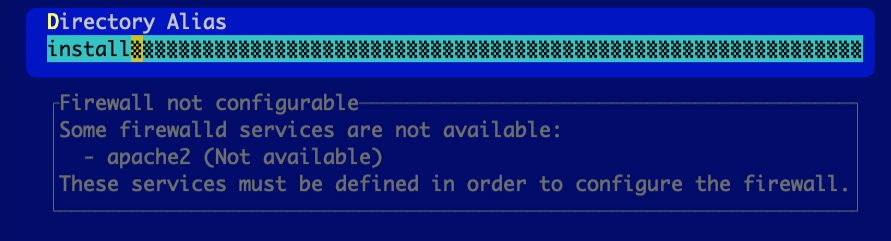

3) Set up a Directory Alias

Next, you’ll set up a Directory Alias, which will be a part of the URL when accessing the installation server.

In our example, we are going to set the Repository Name to ‘install

This will set the base portion of my URL to http://10.0.99.254/install



Directory Alias:

install

4) Setup Repository Name for openSUSE leap 15.5 x86

Now, set up the Repository Name for openSUSE leap 15.5 x86. This name will be used when referencing this installation server via the URL.

Because of this, we want the name to be simple and logical.

If we set our Repository Name to leap-15.5-x86 our install URL will now be http://10.0.99.254/install/leap-15.5-x86/



Repository Name:

leap-15.5-x86

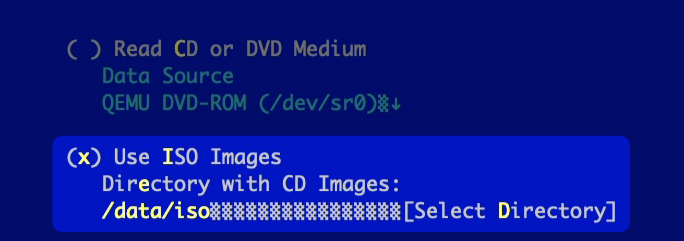

5) Select the Directory for the CD Images

Use ISO Images:

/data/iso

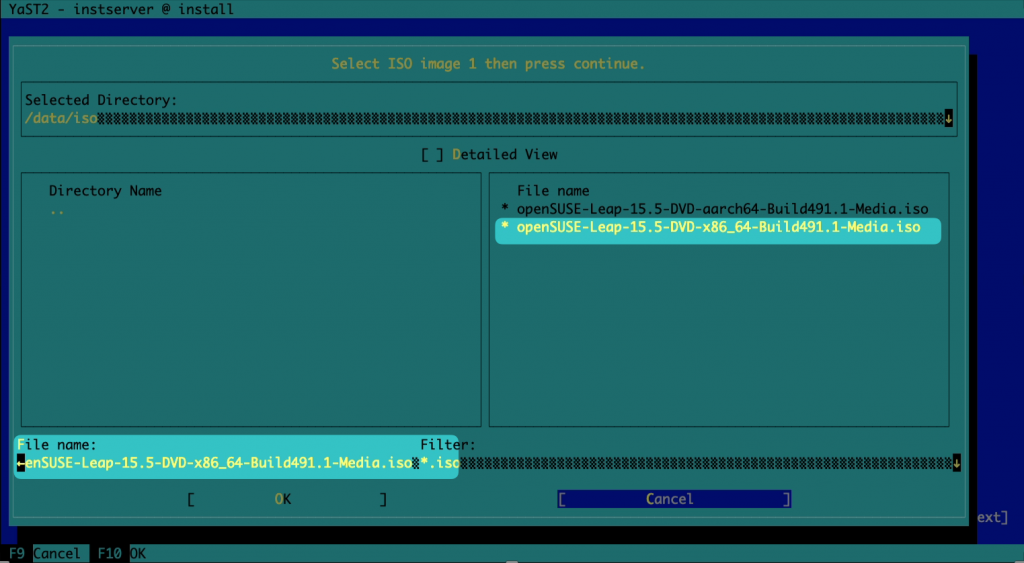

6) Select openSUSE-Leap-DVD-x86_64_Build491.1-Media.iso (or the current x86 iso)

Use ISO Images

openSUSE-Leap-DVD-x86_64_Build491.1-Media.iso

openSUSE-Leap-DVD-x86_64_Build491.1-Media.iso

You will then see a copy while the iso is copying the data to do /srv/install

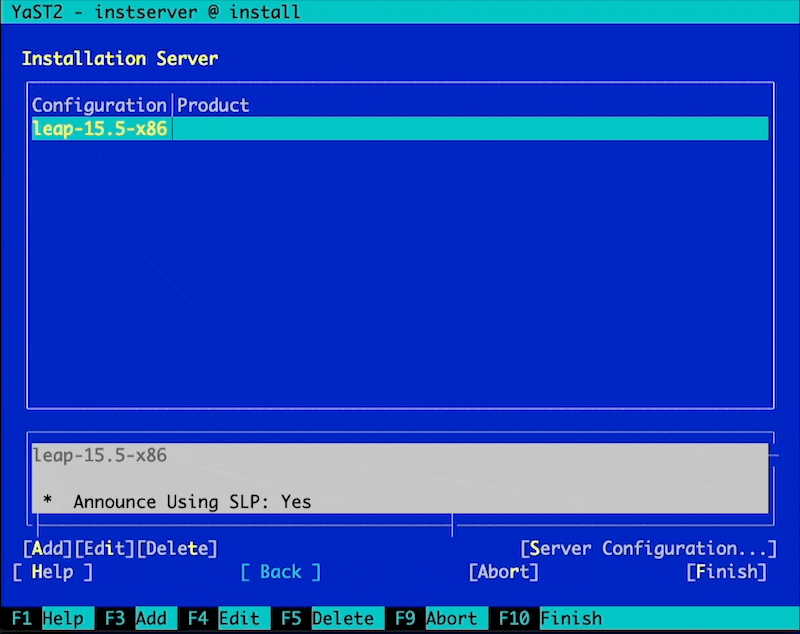

7) Setup Repository Name for openSUSE leap 15.5 arm

Repeat steps 4 to 6 for openSUSE Leap 15.5 arm:

Repository Name:

leap-15.5-arm

Use ISO Images:

/data/iso

Use ISO Images:

openSUSE-Leap-DVD-aarch64_Build491.1-Media.iso


Testing the Installation Server

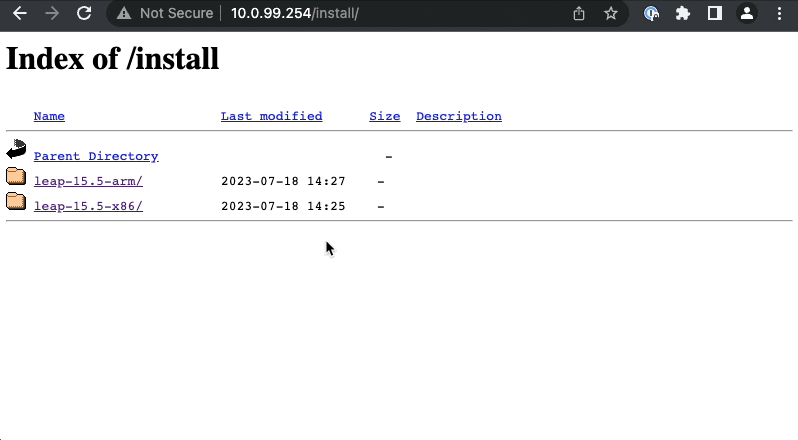

1) Testing in a Browser

You can test the Installation Server in a web browser since it’s configured to allow HTTP protocol.

Just enter your installation server’s URL, which should be http://10.0.99.254/install.




Using the Installation Server

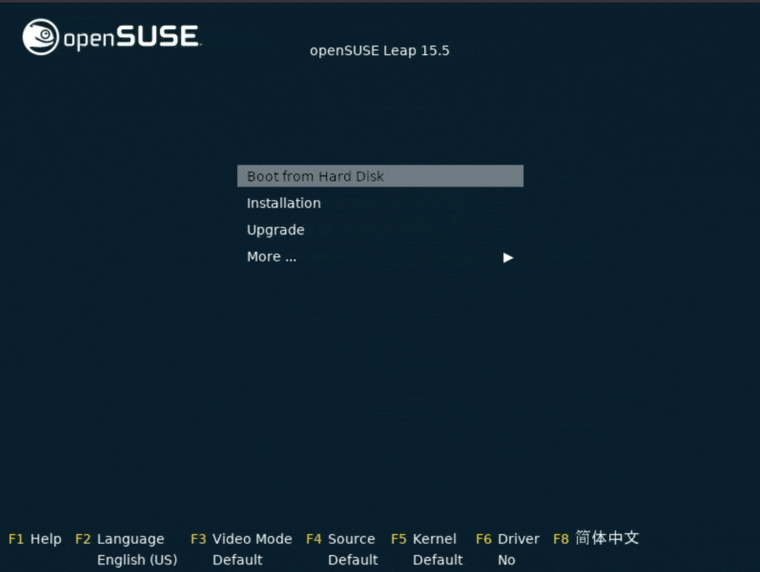

1)Using the Installation Server

To use the Installation Server, you need to point the openSUSE Leap installation program to the HTTP source.

You can do this by simply pressing the F4 key when you are in the Boot Menu and Selecting an HTTP source

Boot Options:

Press F4

Select

HTTP

Server

10.0.99.254

Directory

/data/iso/install/leap-15.5-x86/CD1/

Conclusion

This blog post, the first of two, outlines the steps needed to setup an OpenSUSE Leap installation server.

If you are seeking a robust and reliable Linux distribution for your workloads, you should consider openSUSE.

As a CentOS alternative, openSUSE brings numerous benefits, including stability, SUSE’s support to the community, powerful system management tools, advanced distro features, and access to a rich package repository. The active openSUSE community and easy migration tools further enhance the transition process. If you are seeking a robust and reliable Linux distribution for your workloads, you should consider openSUSE.
